Product Summary

The PMST4403,115 is a PNP switching transistor in a SOT323 plastic package. Application is switching and linear amplification.

Parametrics

PMST4403,115 absolute maximum ratings: (1)Collector-base voltage open emitter: -40 V; (2)Collector-emitter voltage open base: -40 V; (3)Emitter-base voltage open collector: -5 V; (4)Collector current (DC): -600 mA; (5)Peak collector current: -800 mA; (6)Peak base current: -200 mA; (7)Total power dissipation Tamb ≤ 25 °C; note 1: 200 mW; (8)Storage temperature: -65 to +150 °C; (9)Junction temperature: 150 °C; (10)Operating ambient temperature: -65 to +150 °C.

Features

PMST4403,115 features: (1)High current (max 600 mA); (2)Low voltage (max 40 V).

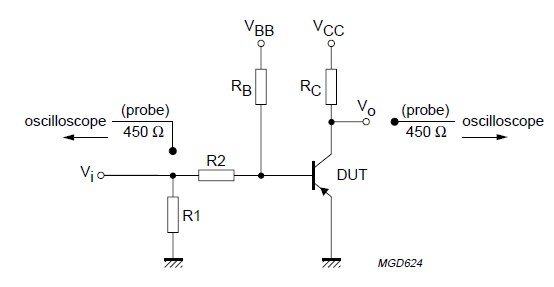

Diagrams

PMST4403,115 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PMST4403,115
PMST4403,115
NXP Semiconductors
Transistors Bipolar (BJT) TRANS SW TAPE-7
Data Sheet
0-1: $0.03
1-25: $0.02
25-100: $0.02
100-250: $0.02
