Product Summary

The IRLZ44S is a power mosfet. Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

Parametrics

IRLZ44S absolute maximum ratings: (1)Drain-Source Voltage VDS: 60 V; (2)Gate-Source Voltage VGS: ± 10 V; (3)Pulsed Drain Current a IDM: 200 A; (4)Linear Derating Factor: 1.0 W/°C; (5)Single Pulse Avalanche Energy b EAS: 400 mJ; (6)Maximum Power Dissipation TC = 25 °C PD: 150 W; (7)Peak Diode Recovery dV/dt c dV/dt: 4.5 V/ns; (8)Operating Junction and Storage Temperature Range TJ, Tstg: - 55°C to + 175 °C; (9)Soldering Recommendations (Peak Temperature)d for 10 s: 300 °C.

Features

IRLZ44S features: (1)Halogen-free According to IEC 61249-2-21 Definition; (2)Surface Mount; (3)Available in Tape and Reel; (4)Dynamic dV/dt Rating; (5)Logic-Level Gate Drive; (6)RDS(on)Specified at VGS = 4 V and 5 V; (7)175 °C Operating Temperature; (8)Fast Switching; (9)Compliant to RoHS Directive 2002/95/E.

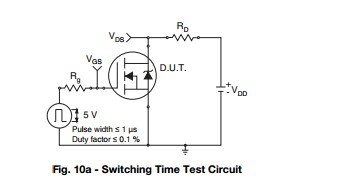

Diagrams

IRLZ44S pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRLZ44S
IRLZ44S

Vishay/Siliconix

MOSFET N-Chan 60V 50 Amp

Data Sheet

Negotiable
IRLZ44S, SiHLZ44S
IRLZ44S, SiHLZ44S

Other


Data Sheet

Negotiable
IRLZ44SPBF
IRLZ44SPBF

Vishay/Siliconix

MOSFET N-Chan 60V 50 Amp

Data Sheet

0-650: $1.03
650-1000: $0.97
1000-2000: $0.94
2000-5000: $0.91
IRLZ44STRLPBF
IRLZ44STRLPBF

Vishay/Siliconix

MOSFET N-Chan 60V 50 Amp

Data Sheet

Negotiable
IRLZ44STRL
IRLZ44STRL

Vishay/Siliconix

MOSFET N-Chan 60V 50 Amp

Data Sheet

Negotiable
IRLZ44STRR
IRLZ44STRR

Vishay/Siliconix

MOSFET N-Chan 60V 50 Amp

Data Sheet

Negotiable
IRLZ44STRRPBF
IRLZ44STRRPBF

Vishay/Siliconix

MOSFET N-Chan 60V 50 Amp

Data Sheet

0-1: $1.45
1-10: $1.15
10-25: $1.13
25-100: $1.11
