Product Summary

The BCP69 is a PNP medium power transistor in a SOT223 plastic package. The applications of the BCP69 include General purpose switching and amplification, Power applications such as audio output stages.

Parametrics

BCP69 absolute maximum ratings: (1)VCBO collector-base voltage: 32 V; (2)VCEO collector-emitter voltage: 20 V; (3)VEBO emitter-base voltage: 5 V; (4)IC collector current (DC): 1 A; (5)ICM peak collector current: 2 A; (6)IBM peak base current: 200 mA; (7)Ptot total power dissipation: 1.35 W; (8)Tstg storage temperature: -65 to +150℃; (9)Tj junction temperature: - 150℃; (10)Tamb operating ambient temperature: -65 to +150℃.

Features

BCP69 features: (1)High current (max. 1 A); (2)Low voltage (max. 20 V).

Diagrams

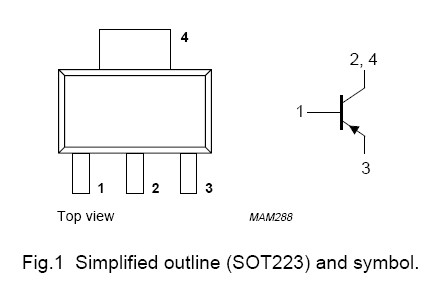

BCP69 Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BCP69
BCP69
Fairchild Semiconductor
Transistors Bipolar (BJT) SOT-223 PNP GP AMP
Data Sheet
0-1: $0.17
1-25: $0.15
25-100: $0.13
100-250: $0.09
