Product Summary

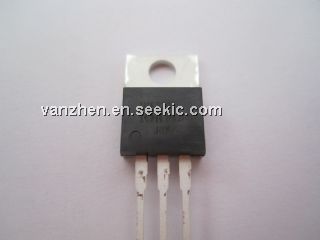

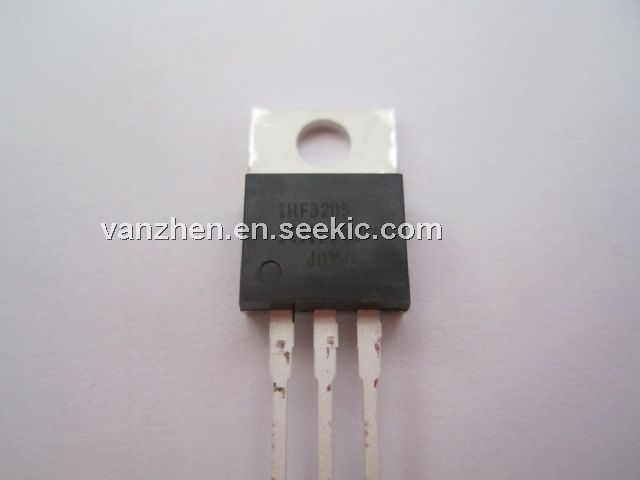

The IRF3205PBF is a power MOSFET. Its package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry. It has a wide variety of applications.

Parametrics

IRF3205PBF absolute maximum ratings: (1)ID @ TC = 25℃, Continuous Drain Current, VGS @ 10V: 110A; (2)ID @ TC = 100℃, Continuous Drain Current, VGS @ 10V: 80A; (3)IDM, Pulsed Drain Current: 390A; (4)PD @TC = 25℃, Power Dissipation: 200W; (5)Linear Derating Factor: 1.3W/℃; (6)VGS, Gate-to-Source Voltage: ±20V; (7)IAR, Avalanche Current: 62A; (8)EAR, Repetitive Avalanche Energy: ±20mJ; (9)dv/dt, Peak Diode Recovery dv/dt: 5.0V/ns; (10)TJ, TSTG, Operating Junction and Storage Temperature Range: -55 to + 175℃; (11)Soldering Temperature, for 10 seconds: 300 (1.6mm from case )℃.

Features

IRF3205PBF features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)Dynamic dv/dt Rating; (4)175℃ Operating Temperature; (5)Fast Switching; (6)Fully Avalanche Rated; (7)Lead-Free.:

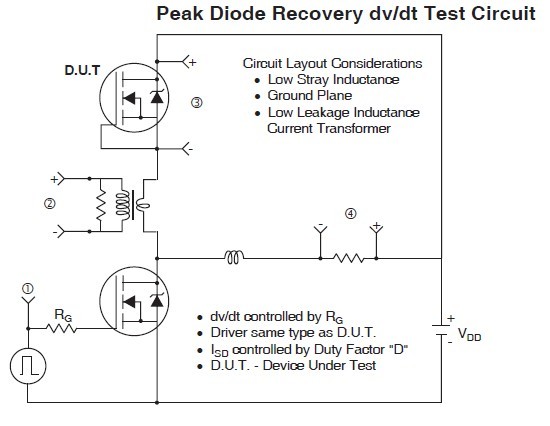

Diagrams

IRF3205PBF pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRF3205PBF
IRF3205PBF
International Rectifier
MOSFET MOSFT 55V 98A 8mOhm 97.3nC
Data Sheet
0-1: $1.96
1-25: $1.27
25-100: $0.92
100-250: $0.86
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRF3205ZPBF
IRF3205ZPBF
International Rectifier
MOSFET MOSFT 55V 110A 6.5mOhm 76nC Qg
Data Sheet
0-1: $2.12
1-25: $1.37
25-100: $0.99
100-250: $0.93
IRF3205STRLPBF
IRF3205STRLPBF
International Rectifier
MOSFET MOSFT 55V 110A 8mOhm 97.3nC
Data Sheet
0-1: $2.41
1-25: $1.57
25-100: $1.13
100-250: $1.06
IRF3205SPBF
IRF3205SPBF
International Rectifier
MOSFET
Data Sheet
0-1: $1.73
1-25: $1.12
25-100: $0.89
100-250: $0.88
IRF3205PBF
IRF3205PBF
International Rectifier
MOSFET MOSFT 55V 98A 8mOhm 97.3nC
Data Sheet
0-1: $1.96
1-25: $1.27
25-100: $0.92
100-250: $0.86
IRF3205LPBF
IRF3205LPBF
International Rectifier
MOSFET MOSFT 55V 110A 8mOhm 97.3nC
Data Sheet
0-1: $1.91
1-25: $1.24
25-100: $0.89
100-250: $0.83
IRF3205L
IRF3205L

MOSFET N-CH 55V 110A TO-262
Data Sheet
0-150: $1.86
