Product Summary

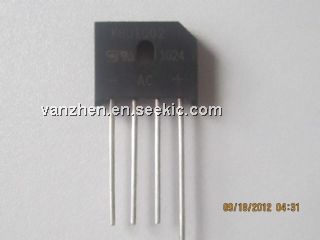

The kbu1002 is a 10A bridge rectifier.

Parametrics

kbu1002 absolute maximum ratings: (1) Peak Repetitive Reverse Voltage VRRM: 200V; (2) Working Peak Reverse Voltage VRWM: 200V; (3) DC Blocking Voltage VR: 200V; (4) RMS Reverse Voltage VR (RMS) : 140V; (5) Average Rectified Output Current@Tc=100°C, Io: 10A; (6) Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method) IFSM: 300A; (7) Typical Thermal Resistance RθJC: 8K/W; (8) Operating and Storage Temperature Range: -65 to +150°C.

Features

kbu1002 features: (1) Diffused Junction; (2) Low Forward Voltage Drop; (3) High Current Capability; (4) High Reliability; (5) High Surge Current Capability; (6) Ideal for Printed Circuit Boards.

Diagrams

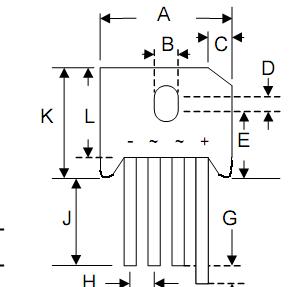

kbu1002 dimension
