Product Summary

The BAT54S is a surfact mount schottky barrier.

Parametrics

BAT54S absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM: 30 V; (2)Maximum Average Forward Current at Ta=25℃ IO: 0.2A; (3)Peak Forward Surge Current, 8.3ms single half sine-wave superimposed on rated load (JEDEC method) IFSM: 0.6 A; (4)Maximum Instantaneous Forward Voltage VF: 0.32 @ IF=0.001A; 1.0 @ IF=0.1A V; (5)Maximum DC Reverse Current at Rated DC Blocking Voltage IR: 0.002 @VR=25V mA; (6)Thermal Resistance, Junction to Ambient Air RθJA: 635℃/ W; (7)Operating Junction Temperature Range TJ: -55 to +125℃; (8)Storage Temperature Range TSTG: -55 to +125℃.

Features

BAT54S features: (1)Low turn-on voltage; (2)Fast switching; (3)PN Junction Guard Ring for Transient and ESD Protection.

Diagrams

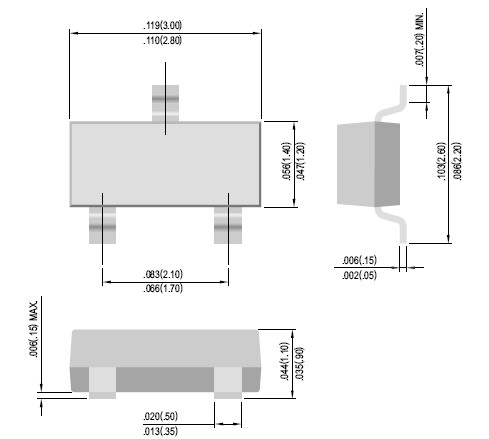

BAT54S dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BAT54S
BAT54S
Fairchild Semiconductor
Schottky (Diodes & Rectifiers) 30V 200mA
Data Sheet
0-1: $0.07
1-25: $0.04
25-100: $0.03
100-250: $0.02
BAT54S /T3
BAT54S /T3
NXP Semiconductors
Schottky (Diodes & Rectifiers) DIODE SCHTKY TAPE-11
Data Sheet
Negotiable
BAT54S,215
BAT54S,215
NXP Semiconductors
Schottky (Diodes & Rectifiers) SCHOTTKY 30V DUAL
Data Sheet
0-1: $0.03
1-25: $0.02
25-100: $0.02
100-250: $0.02
BAT54S,235
BAT54S,235
NXP Semiconductors
Schottky (Diodes & Rectifiers) DIODE SCHTKY TAPE-11
Data Sheet
0-1: $0.14
1-25: $0.10
25-100: $0.08
100-250: $0.05
BAT54S_D87Z
BAT54S_D87Z
Fairchild Semiconductor
Schottky (Diodes & Rectifiers) 30V 200mA
Data Sheet
0-1: $0.19
1-25: $0.13
25-100: $0.08
100-250: $0.05
BAT54S_ND87Z
BAT54S_ND87Z
Fairchild Semiconductor
Schottky (Diodes & Rectifiers) 30V 200mA
Data Sheet
Negotiable
BAT54S_NL
BAT54S_NL
Fairchild Semiconductor
Schottky (Diodes & Rectifiers) 30V 200mA Pb-FREE DUAL SERIES
Data Sheet
Negotiable
BAT54S_Q
BAT54S_Q
Fairchild Semiconductor
Schottky (Diodes & Rectifiers) 30V 200mA
Data Sheet
Negotiable
