Product Summary

The SPA04N60C3 is a cool mos power transistor.

Parametrics

SPA04N60C3 absolute maximum ratings: (1)Continuous drain current TC = 100 °C ID: 4.5 A to 2.8 A; (2)Pulsed drain current, tp limited by Tjmax ID puls: 13.5 A to 13.5 A; (3)Avalanche energy, single pulse ID=3.4, VDD=50V EAS: 130 to 130 mJ; (4)Avalanche energy, repetitive tAR limited by Tjmax 2)ID=4.5A, VDD=50V EAR: 0.4; (5)Avalanche current, repetitive tAR limited by Tjmax IAR: 4.5 A; (6)Gate source voltage static VGS: ±20 V; (7)Gate source voltage AC (f >1Hz)VGS: ±30; (8)Power dissipation, TC = 25°C Ptot: 50 to 31 W; (9)Operating and storage temperature Tj , Tstg: -55°C to +150 °C.

Features

SPA04N60C3 features: (1)New revolutionary high voltage technology; (2)Ultra low gate charge; (3)Periodic avalanche rated; (4)Extreme dv/dt rated; (5)High peak current capability; (6)Improved transconductance; (7)P-TO-220-3-31: Fully isolated package (2500 VAC; 1 minute).

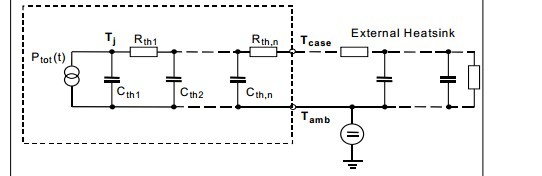

Diagrams

SPA04N60C3 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SPA04N60C3
SPA04N60C3
Infineon Technologies
MOSFET COOL MOS N-CH 650V 4.5A
Data Sheet
0-1: $0.97
1-10: $0.77
10-100: $0.67
100-250: $0.58
