Product Summary
The PXT3906TRL is a PNP switching transistor in a SOT89 plastic package. NPN complement: PXT3904. Application is (1)High-speed saturated switching applications.
Parametrics
SFH6156-2T absolute maximum ratings: (1)VCBO collector-base voltage open emitter: 40 V; (2)VCEO collector-emitter voltage open base: 40 V; (3)VEBO emitter-base voltage open collector: 6 V; (4)IC collector current (DC): 100 mA; (5)ICM peak collector current: 200 mA; (6)IBM peak base current: 100 mA; (7)Ptot total power dissipation Tamb ≤ 25 °C; note 1: 1.2 W; (8)Tstg storage temperature: 55 +150 °C; (9)Tj junction temperature: 150 °C; (10)Tamb operating ambient temperature: 55 +150 °C.
Features
SFH6156-2T features: (1)Low current (max. 100 mA); (2)Low voltage (max. 40 V).

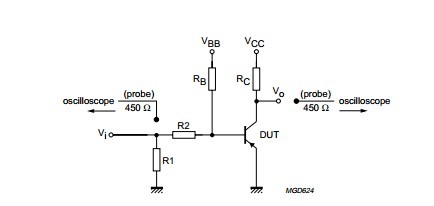

Diagrams
