Product Summary

The nta4001nt1g is a small signal MOSFET. Applications of the nta4001nt1g include: Power Management Load Switch, Level Shift, Portable Applications such as Cell Phones, Media Players,Digital Cameras, PDA, Video Games, Hand Held Computers, etc.

Parametrics

nta4001nt1g absolute maximum ratings: (1) Drain-to-Source Voltage VDSS: 20V; (2) Gate-to-Source Voltage VGS: ±10V; (3) Continuous Drain Current ID: 238mA (Steady State = 25°C) ; (4) Power Dissipation PD: 300mW (Steady State = 25°C) ; (5) Pulsed Drain Current IDM: 714mA (tp≤10μs) ; (6) Operating Junction and Storage Temperature: -55 to 150°C; (7) Continuous Source Current (Body Diode) ISD: 238mA; (8) Lead Temperature for Soldering Purposes TL: 260°C.

Features

nta4001nt1g features: (1) Low Gate Charge for Fast Switching; (2) Small 1.6 X 1.6 mm Footprint; (3) ESD Protected Gate; (4) Pb?Free Package for Green Manufacturing– Compliant.

Diagrams

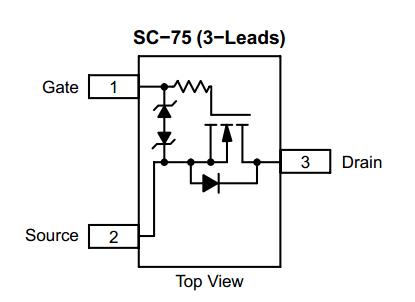

NTA4001NT1G Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
NTA4001NT1G
NTA4001NT1G
ON Semiconductor
MOSFET 20V 238mA N-Channel
Data Sheet
0-1: $0.14
1-25: $0.09
25-100: $0.05
100-500: $0.04
