BAW101S,115

BAW101S,115, high-speed switching diode array, 300 V, 140 mA, 350 mW, SOT

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.03~0.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 5000 :	0.05 / Piece
5000 ~ 10000 :	0.04 / Piece
10000 ~ 100000 :	0.03 / Piece

PartNumber:: BAW101S,115

Brand:: NXP Semiconductors - nxp | D/C: 13+

Availability:: Supply Ability: 1000000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-07

From Other Seller

Part Number:BAW101S,115
US $0.03 - 0.05
Quantity:

piece

Product Summary

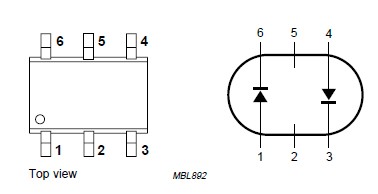

The BAW101S,115 is a high-speed switching diode array with two separate dice, fabricated in planar technology and encapsulated in a small SOT363 plastic SMD package. Applications are (1)High voltage switching; (2)Automotive; (3)Communication.

Parametrics

BAW101S,115 absolute maximum ratings: (1)Continuous reverse voltage: 300 V; (2)Series connection: 600 V; (3)Repetitive peak reverse voltage: 300 V; (4)series connection: 600 V; (5)Continuous forward current single diode loaded; note 1; see Fig.2: 250 mA; Double diode loaded; note 1; see Fig.2: 140 mA; (6)Repetitive peak forward current: 625 mA; (7)Non-repetitive peak forward current square wave; Tj = 25 °C prior to surge; t = 1 ms: 4.5 A; (8)Total power dissipation Tamb = 25 °C; note 1: 350 mW; (9)Storage temperature: -65 to +150 °C; (10)Junction temperature: 150 °C; (11)Operating ambient temperature: -65 to +150 °C.

Features

BAW101S,115 features: (1)Small plastic SMD package; (2)High switching speed: max 50 ns; (3)High continuous reverse voltage: 300 V; (4)Electrically insulated diodes.
