Product Summary
The BAT54C is a surfact mount schottky barrier.
Parametrics
BAT54C absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM: 30 V; (2)Maximum Average Forward Current at Ta=25℃ IO: 0.2A; (3)Peak Forward Surge Current, 8.3ms single half sine-wave superimposed on rated load (JEDEC method) IFSM: 0.6 A; (4)Maximum Instantaneous Forward Voltage VF: 0.32 @ IF=0.001A; 1.0 @ IF=0.1A V; (5)Maximum DC Reverse Current at Rated DC Blocking Voltage IR: 0.002 @VR=25V mA; (6)Thermal Resistance, Junction to Ambient Air RθJA: 635℃/ W; (7)Operating Junction Temperature Range TJ: -55 to +125℃; (8)Storage Temperature Range TSTG: -55 to +125℃.
Features
BAT54C features: (1)Low turn-on voltage; (2)Fast switching; (3)PN Junction Guard Ring for Transient and ESD Protection.

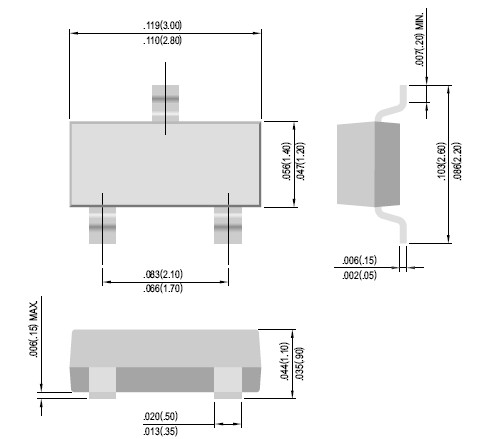

Diagrams
