Product Summary

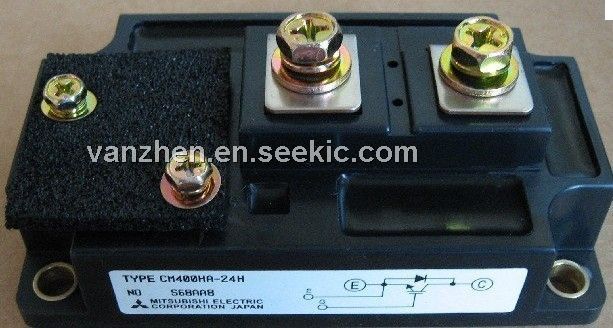

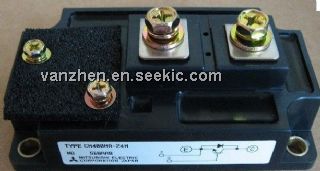

The cm400ha-20f is a Mitsubishi IGBT module. Applications of the cm400ha-20f include: General purpose inverters & Servo controls, etc.
Parametrics
cm400ha-20f absolute maximum ratings: (1) Collector-emitter voltage VCES: 1200V (G-E short) ; (2) Gate-emitter voltage VGES: ±20V (C-E short) ; (3) Collector current IC: 400A (Tc=25°C) , ICM: 800A (Pulse) ; (4) Emitter current IE: 400A (Tc=25°C) , IEM: 800A (Pulse) ; (5) Maximum collector dissipation PC: 1600W (Tc=25°C) ; (6) Junction temperature Tj: -40 to +150°C; (7) Storage temperature Tstg: -40 to +125°C; (8) Main terminal to base plate, AC 1 min. Viso: 2500V (Isolation voltage) .
Features
cm400ha-20f features: (1) IC: 400A; (2) VCES: 1200V; (3) Insulated type; (4) 1-elements in a pack.
