SKM400GA124D

SKM400GA124D, low loss IGBT module, 1200V, 600A, Semikron International

Rated 5 Rating 5 | reviews | Write a review

Price:: US $48.00~68.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	68.00 / Piece
11 ~ 100 :	58.00 / Piece
101 ~ 1000 :	48.00 / Piece

PartNumber:: SKM400GA124D

Brand:: Semikron International - SEMIKRON | D/C: 14+

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-17

From Other Seller

Part Number:SKM400GA124D
US $48.00 - 68.00
Quantity:

piece

Product Summary

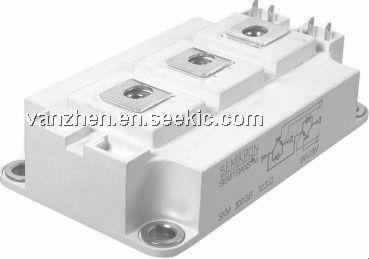

The SKM400GA124D is a low loss IGBT module. The applications of the SKM400GA124D include Switching (not for linear use), inverter drives and UPS.

Parametrics

SKM400GA124D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 600(400)A; (3)ICRM at tp=1ms: 600A; (4)VGES: ±20V; (5)Tstg: -40 to 125℃; (6)Visol: 2500V; (7)IF: 390 (260) A; (8)IFRM: 600A; (9)IFSM: 2900A.

Features

SKM400GA124D features: (1)Mos input (voltage controlled); (2)N channel, homgeneous Si-structure (NPT-Nonpunch-through IGBT); (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6 x Icnom; (6)Latch-up free; (7)Fast & soft inverse CAL diodes; (8)Isolated copper baseplate using DBC Direct Copper Bonding Technology; (9)Large clearance (12mm) and creepage distances (20mm).
