Product Summary
The skm500ga128d is a SPT IGBT module. Applications of the skm500ga128d include: AC inverter drives, UPS and electronic welders at fsw up to 20kHz.
Parametrics
skm500ga128d absolute maximum ratings: (1) VGE (th) : 4.5 to 6.45V (VGE=VCE, IC=16mA) ; (2) ICES: 0.2 to 0.6mA (VGE=0, VCE=VCES, Tj=25°C) ; (3) VCE (TO) : 1 to 1.15V (Tj=25°C) ; (4) rCE: 2.3 to 3mΩ (VGE=15V, Tj=25 (125) °C; (5) VCE (sat) : 1.9 to 2.35V ( Icnom=400A, VGE=15V, chip level) .
Features
skm500ga128d features: (1) Homogeous Si; (2) SPT=soft-puch-through technology; (3) VCEsat with positive temperature coefficient; (4) high short circuit capability, self limiting to 6×Ic.

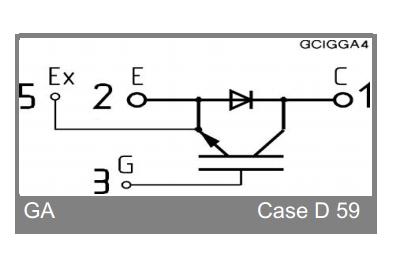

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKM500GA128D |
Other |
|
Data Sheet |
Negotiable |
|
||||
