Product Summary

SKM600GA124D is a Trench IGBT Module. The applications of the SKM600GA124D include Switching (not for linear use), Wind generators (low loss), Inverter drives (low loss) and UPS (low loss).

Parametrics

SKM600GA124D absolute maximum ratings: (1)VCES: 1200v; (2)IC: 700A; (3)ICRM: 800A; (4)VGES: ±20V; (5)TVJ: -40 to +150 ℃; (6)Visol: 2500V.

Features

SKM600GA124D features: (1)VGE(th): 4.5 to 6.5 V; (2)ICES: 0.2 to 0.6 mA; (3)rCE: 2.25 mΩ; (4)Cies: 44 to 60 nF.

Diagrams

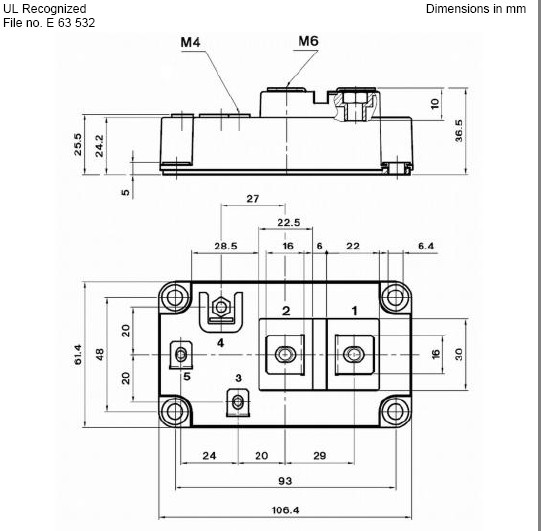

SKM600GA124D dimension
