Product Summary

The SKM300GB126D is a SPT IGBT module. The applications of the SKM300GB126D include AC inverter drives, UPS, Electronic welders at fsw up to 20 kHz.

Parametrics

SKM300GB126D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 370 (265)A; (3)ICRM: 400A; (4)VGES: ±20V; (5)Tstg: -40 to 150℃; (6)Visol: 4000V.

Features

SKM300GB126D features: (1)homogeneous Si; (2)SPT=Soft-punch-through; (3)VCEsat with positive temperature coefficient; (4)High short circuit capability, self limiting to 6 x Ic.

Diagrams

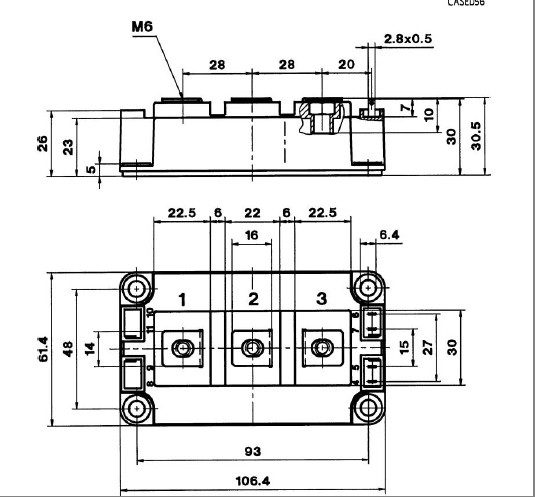

SKM300GB126D dimension
