Product Summary

The 2MBI200NT-120 is an IGBT module. It is used in high power switching, A.C. motor control, D.C. Motor Control, uninterruptible power supply.

Parametrics

2MBI200NT-120 absolute maximum ratings: (1)Collector-Emitter voltage: 600V; (2)Gate-Emitter voltage: ±20V; (3)Collector current: Continuous: 200A; 1ms: 400A; (4)Max. power dissipation: 780W; (5)Operating temperature: +150℃; (6)Storage temperature: -40 to +125℃; (7)Isolation voltage:AC 2500 (1min.)V; (8)Screw torque: Mounting: 3.5N.m; Terminals: 3.5N.m.

Features

2MBI200NT-120 features: (1) Square RBSOA; (2) Low Saturation Voltage; (3) Less Total Power Dissipation; (4) Improved FWD Characteristic; (5) Minimized Internal Stray Inductance; (6) Overcurrent Limiting Function (~3 Times Rated Current).

Diagrams

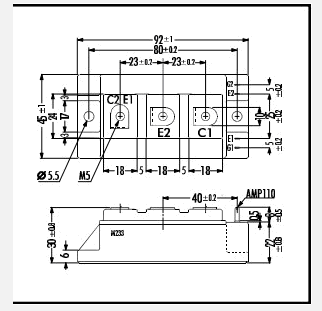

2MBI200NT-120 block diagram
