Product Summary
The SKM500GA123D is an IGBT module.
Parametrics
SKM500GA123D absolute maximum ratings: (1)VCES: 1200V; (2)IC, TC=25(80)℃: 500(420)A; (3)ICRM, tp=1ms: 800A; (4)VGES: ±20V; (5)Tvj, Tstg, TOPERATION≤Tstg: -40 to +150(125)℃; (6)Visol, AC, 1MIN: 2500V.
Features
SKM500GA123D features: (1)MOS input; (2)N channel, homgeneous Si; (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6 x Icnom; (6)Latch up free; (7)Fast and soft CAL diodes; (8)Isolated copper baseplate using DBC direct copper bonding technology; (9)Large clearance and creepage distance.

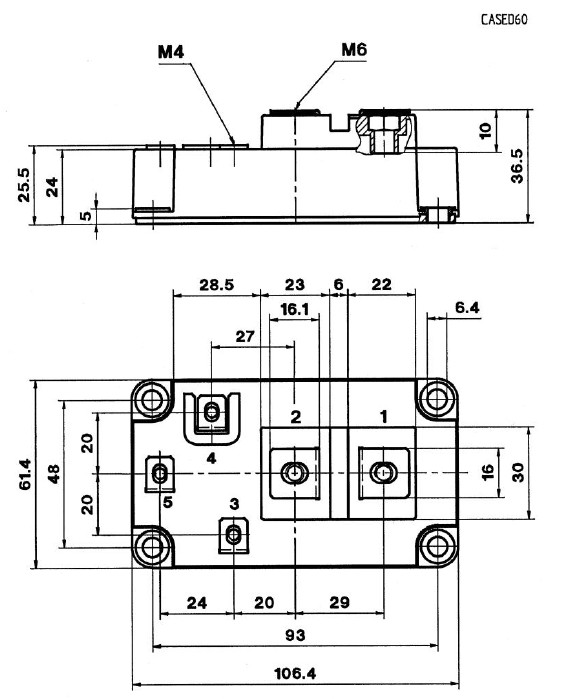

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKM500GA123D |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
SKM500GA123D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM500GA124D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM500GA128D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM500GA174D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM50GAL100D |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
SKM50GAL123D |
Other |
|
Data Sheet |
Negotiable |
|
||||
