Product Summary

The SKM500GA124D is an IGBT module. Applications of the SKM500GA124D are: (1)Switched mode power supplies; (2)Three phase inverters for AC motor speed control; (3)Pulse frequencies also above 10kHz.

Parametrics

SKM500GA124D absolute maximum ratings: (1)VCES: 1200V; (2)IC, TC=25(80)℃: 700(500)A; (3)ICRM, tp=1ms: 800A; (4)VGES: ±20V; (5)Tvj, Tstg, TOPERATION≤Tstg: -40 to +150(125)℃; (6)Visol, AC, 1MIN.: 2500V.

Features

SKM500GA124D features: (1)MOS input; (2)N channel, homgeneous Si; (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6 x Icnom; (6)Latch up free; (7)Fast and soft CAL diodes; (8)Isolated copper baseplate using DBC direct copper bonding technology; (9)Large clearance and creepage distance.

Diagrams

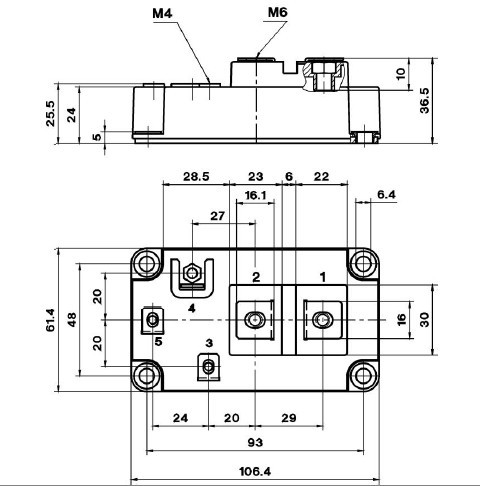

SKM500GA124D pin connection
