Product Summary
The 2MBI150U4H-120-50 is an IGBT module with RoHS compliant. Its collector-Emitter voltage is 1200V at at Tc= 25℃. Its collector current is 200A, when the operation condition is Continuous and Tc=25℃.
Parametrics
2MBI150U4H-120-50 absolute maximum ratings( at Tc= 25℃ unless otherwise specified ): (1)Collector-Emitter voltage, VCES: 1200V; (2)Gate-Emitter voltage, CES: ±20V; (3)Collector current, Ic: 200A, when the operation condition is Continuous and Tc=25℃; (4)Collector current, Ic: 150A, when the operation condition is Continuous and Tc=80℃; (5)Collector current, Icp: 400A, when the operation condition is 1ms and Tc=25℃; (6)Collector current, Icp: 300A, when the operation condition is 1ms and Tc=80℃; (7)Collector current, -Ic: 150A; (8)Collector current, -Ic pulse: 300A, when the operation condition is 1ms; (9)Collector Power Dissipation, Pc: 780W, when the operation condition is 1DEVICE; (10)Junction temperature, Tj: +150℃; (11)Storage temperature, Tstg: -40 to +125℃; (12)Isolation voltage, between terminal and copper base, Viso: 2500 VAC, when the operation condition is AC : 1min; (13)Screw torque: Mounting: 3.5 N.m; Terminals: 4.5N.m.
Features
2MBI150U4H-120-50 features: (1)Avoid exposure to corrosive gases and dust; (2)Avoid excessive external force on the module; (3)Store modules with unprocessed terminals; (4)Do not drop or otherwise shock the modules when transporting.

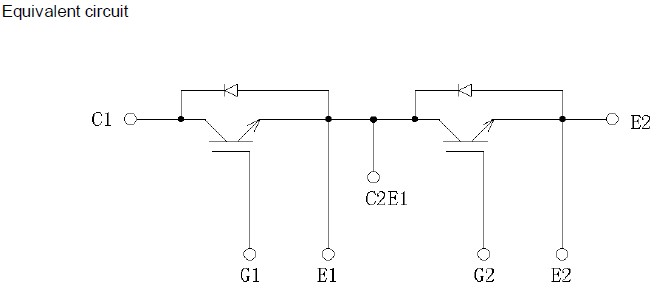

Diagrams
