Product Summary

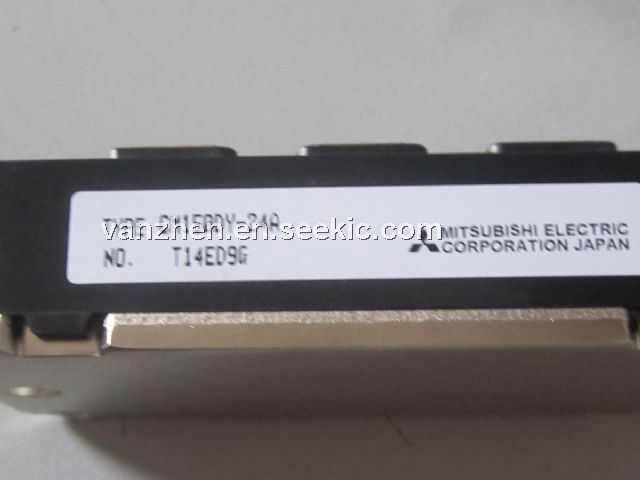

The cm150dy is a MITSUBISHI IGBT module. The cm150dy consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. Applications of the cm150dy include: AC Motor Control, Motion/Servo Control, UPS and Welding Power Supplies.
Parametrics
cm150dy absolute maximum ratings: (1) Junction Temperature Tj: -40 to 150°C; (2) Storage Temperature Tstg: -40 to 125°C; (3) Collector-Emitter Voltage (G-E SHORT) VCES: 600V; (4) Gate-Emitter Voltage (C-E SHORT) VGES: ±20V; (5) Collector Current (TC=25°C) IC: 150A; (6) Peak Collector Current ICM: 300A; (7) Emitter Current (tc=25°C) IC: 150A; (8) Maximum Collector Dissipation (TC=25°C, Tj≤150°C) Pc: 600W.
Features
cm150dy features: (1) Low Drive Power; (2) Low VCE(sat) ; (3) Discrete Super-Fast Recovery Free-Wheel Diode; (4) High Frequency Operation; (5) Isolated Baseplate for Easy Heat Sinking.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM150DY-12H |
|
IGBT MOD DUAL 600V 150A H SER |
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
CM150DY-12NF |
|
IGBT MOD DUAL 600V 150A NF SER |
Data Sheet |
|
|
||||||||||||||||||
|
CM150DY-24A |
|
IGBT MOD DUAL 1200V 150A A SER |
Data Sheet |
Negotiable |
|
||||||||||||||||||
 |
CM150DY-24H |
|
IGBT MOD DUAL 1200V 150A H SER |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
CM150DY-24NF |
|
IGBT MOD DUAL 1200V 150A NF SER |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
CM150DY-28H |
|
IGBT MOD DUAL 1400V 150A H SER |
Data Sheet |
Negotiable |
|
||||||||||||||||||
|
CM150DY-34A |
|
IGBT MOD DUAL 1700V 150A A SER |
Data Sheet |
|
|
||||||||||||||||||
