Product Summary

The 2MBI100NE-120 is an IGBT module. Applications are (1)High power switching; (2)A.C motor controls; (3)D.C motor controls; (4)Uninterruptible power supply.

Parametrics

2MBI100NE-120 absolute maximum ratings: (1)Collector-emitter voltage Vces: 1200 V; (2)Gate -emitter voltage Vges: ± 20 V; (3)Collector current continuous IC: 100 A; 1ms IC pulse: 200 A; Continuous -IC: 100 A; 1ms -IC pulse: 200 A; (4)Max. power dissipation PC: 780 W; (5)Operating temperature Tj: +150 °C; (6)Storage temperature Tstg: -40 to +125 °C; (7)Isolation voltage A.C. 1min. Vis: 2500 V; (8)Current mounting 1: 3.5 Nm; Terminals 2: 4.5 Nm.

Features

2MBI100NE-120 features: (1)Square RBSOA; (2)Low saturation voltage; (3)Less total power dissipation; (4)Improved FWD characteristic; (5)Minimized internal stray inductance; (6)Overcurrent limiting function (4~5 times rated current).

Diagrams

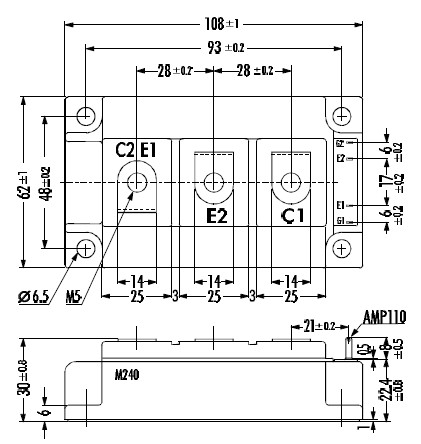

2MBI100NE-120 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
2MBI100NE-120
2MBI100NE-120

Other


Data Sheet

Negotiable
