Product Summary
The BSM191F is a power module.
Parametrics
BSM191F absolute maximum ratings: (1)Drain-source voltage, VDS: 1000 V; (2)Drain-gate voltage, RGS = 20 kW, VDGR: 1000V; (3)Gate-source voltage, VGS: ± 20V; (4)Continuous drain current, TC = 25℃, ID: 28 A; (5)Pulsed drain current, TC = 25℃, ID puls: 110A; (6)Operating and storage temperature range Tj, Tstg: –55 to +150℃; (7)Power dissipation, TC = 25℃, Ptot: 700 W; (8)Thermal resistance Chip-case, Rth JC: ≤ 0.18K/W; (9)Insulation test voltage, t = 1 min. Vis: 2500 Vac; (10)Creepage distance, drain-source: 16 mm; (11)Clearance, drain-source: 11mm.
Features
BSM191F features: (1)VDS = 1000 V; (2)I D = 28 A; (3)R DS(on) = 0.42 W; (4)Power module; (5)Single switch; (6)FREDFET; (7)N channel; (8)Enhancement mode; (9)Package with insulated metal base plate; (10)Package outline/Circuit diagram.

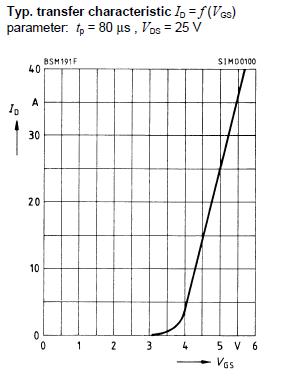

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BSM191F |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
