Product Summary

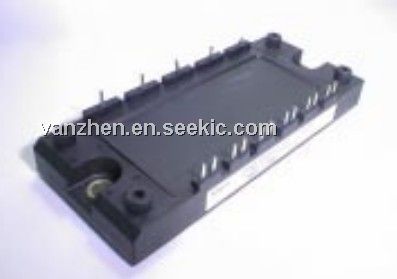

The 6MBI25S-120-02 is a 6-pack IGBT. Applications are (1)High power switching; (2)A.C. motor controls; (3)D.C. motor controls; (4)Uninterruptible power supply.

Parametrics

6MBI25S-120-02 absolute maximum ratings: (1)Collector-emitter voltage VCES: 1200 V; (2)Gate -emitter voltage VGES: ± 20 V; (3)Collector current (25°C / 80°C)continuous IC: 35 / 25 A; 1ms IC PULSE: 70 / 50 A; continuous -IC: 35 / 25 A; 1ms -IC PULSE: 70 / 50 A; (4)Max. power dissipation PC: 200 W; (5)Operating temperature Tj: +150 °C; (6)Storage temperature Tstg: -40 ~ +125 °C; (7)Isolation voltage A.C. 1min. Vis: 2500 V; (8)Screw torque mounting: 3.5 Nm.

Features

6MBI25S-120-02 features: (1)NPT-technologie; (2)Solderable package; (3)Square SC SOA at 10 x IC; (4)High short circuit withstand-capability; (5)Small temperature dependence of the turn-off switching loss; (6)Low losses and soft switching.

Diagrams

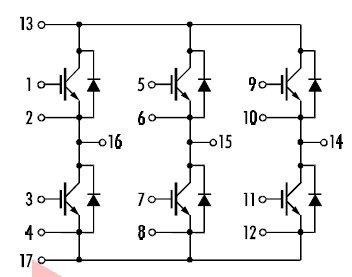

6MBI25S-120-02 pin connection
