Product Summary

The PMBT2907A,215 is a PNP switching transistor in a SOT23 plastic package. Application is switching and linear amplification.

Parametrics

PMBT2907A,215 absolute maximum ratings: (1)Collector-base voltage open emitter: -60 V; (2)Collector-emitter voltage open base: -60 V; (3)Emitter-base voltage open collector: -5 V; (4)Collector current (DC): -600 mA; (5)Peak collector current: -800 mA; (6)Peak base current - -200 mA; (7)Total power dissipation Tamb ≤ 25 °C: 250 mW; (8)Storage temperature: -65 to +150 °C; (9)Junction temperature: 150 °C; (10)Operating ambient temperature: -65 to +150 °C.

Features

PMBT2907A,215 features: (1)High current (max 600 mA); (2)Low voltage (max 60 V).

Diagrams

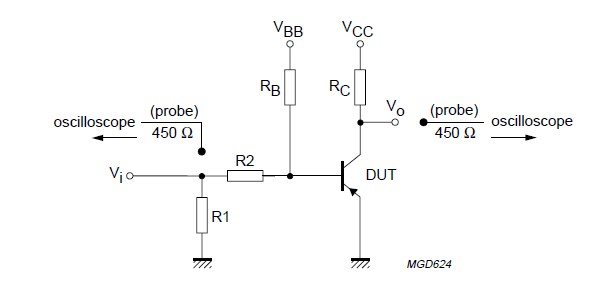

PMBT2907A,215 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PMBT2907A,215
PMBT2907A,215

NXP Semiconductors

Transistors Bipolar (BJT) PNP SW 600MA 60V

Data Sheet

0-1: $0.03
1-25: $0.01
25-100: $0.01
100-250: $0.01
