AO4612

AO4612, complementary enhancement mode field effect transistor, 60 V, 3.6 A, 1.28 W, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.50 / Piece
1001 ~ 10000 :	0.40 / Piece
10001 ~ 100000 :	0.30 / Piece

PartNumber:: AO4612

Brand:: Alpha & Omega Semiconductors - AOS | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-17

From Other Seller

Part Number:AO4612
US $0.30 - 0.50
Quantity:

piece

Product Summary

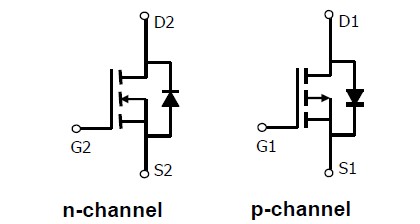

The AO4612 is a complementary enhancement mode field effect transistor. The AO4612 uses advanced trench technology MOSFETs to provide excellent RDS(ON) and low gate charge. The complementary MOSFETs may be used to form a level shifted high side switch, and for a host of other applications. Standard Product AO4612 is Pb-free.

Parametrics

AO4612 absolute maximum ratings: (1)Drain-source voltage: 60 V, -60 V; (2)Gate-source voltage: ±20 V; (3)Continuous drain current TA=25°C: 4.5 A, -3.2 A; TA=70°C: 3.6 A, -2.6 A; (4)Pulsed drain current: 20 A, -20 A; (5)Power dissipation TA=25°C: 2 W; TA=70°C: 1.28 W; (6)Junction and storage temperature range: -55 to 150 °C.

Features

AO4612 features: (1)N-channel: VDS (V)= 60V ID = 4.5A (VGS=10V); (2)RDS(ON): < 56mΩ (VGS=10V); < 77mΩ (VGS=4.5V); (3)P-channel: -60V; -3.2A (VGS = -10V); (4)RDS(ON): < 1.5mΩ (VGS = -10V); < 135mΩ (VGS = -4.5V).
