Product Summary
The 1N4749A,113 is a low voltage regulator diode in hermetically sealed SOD66 (DO-41) packages. The 1N4749A,113 consists of 22 types with nominal working voltages from 3.3 to 24 V. Application is low voltage stabilizers.
Parametrics
1N4749A,113 absolute maximum ratings: (1)Continuous forward current: 500 mA; (2)Working current: see Table “Per type”; (3)Non-repetitive peak reverse current: see Table “Per type”; (4)Total power dissipation Tamb = 50 °C: 1000 mW; (5)Storage temperature: -65 to +200 °C; (6)Junction temperature: -65 to +200 °C.
Features
1N4749A,113 features: (1)Total power dissipation: max. 1000 mW; (2)Tolerance series: ±5%; (3)Working voltage range: nom. 3.3 to 24 V.

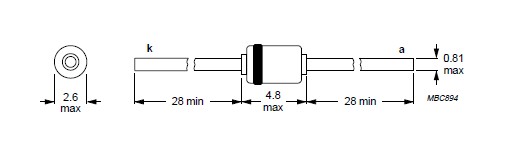

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 1N4749A,113 |
NXP Semiconductors |
Zener Diodes 24V 1W |
Data Sheet |
|
|
||||||||||||
