Product Summary

The OV5653 is an advanced digital imaging and HD video. The OV5653 is a high-performance 5.17 megapixel CMOS CameraChip for digital still image, video camcorder and mobile handset products, With an optical format of only 1/2.5 inches, the OV5653 takes advantage of the compact 2.2 μm pixel size of the OmniPixel2 technology, which is one of the industry’s smallest pixel sizes commercially available. OmniPixel2’s proprietary new process, which is manufactured on 0.13-micron process technology, and innovative pixel design are key to the OV5653’s high dynamic range. It enables an increased fill factor of 40 percent and more vibrant and truer-to-life color reproduction. The OV5653 sensor is also designed with zero-gap micro-lens structures, which allows pixels to capture over 20 percent more light making more effective use of the smaller pixel’s active area. Additionally, the OV5653 offers improved quantum efficiency, which optimizes image performance and gives rise to a further increased full well capacity.

Parametrics

OV5653 absolute maximum ratings: (1)array size: 2592 x 1944; (2)power supply analog: 2.6 to 3.0V; (3)digital: 1.2V ± 5%; (4)output format: 10-bit digital; (5)lens size: 1/2.5"; (6)maximum system clock: 48 MHz; (7)pixel size: 2.2 μm x 2.2 μm.

Features

OV5653 features: (1)optical black level calibration; (2)video or snapshot operations; (3)programmable/auto exposure and gain control; (4)programmable/auto white balance control; (5)horizontal and vertical sub-sampling for high frame rate with excellent image quality; (6)high frame rate output mode; (7)programmable image windowing; (8)variable frame rate control; (9)on-chip luminance average counter.

Diagrams

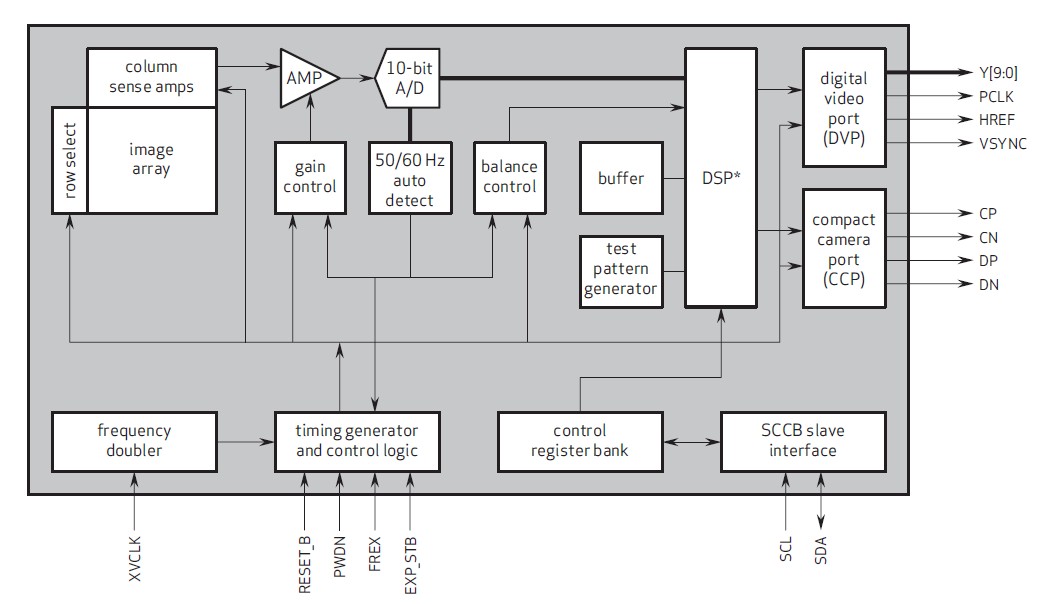

OV5653 block diagram
