ACS712ELCTR-20A-T

linear current sensor, 8V, 60A, SOIC8

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.00 / Piece
100 ~ 1000 :	1.80 / Piece
1000 ~ 100000 :	1.50 / Piece

PartNumber:: ACS712ELCTR-20A-T

Brand:: Allegro MicroSystems - Allegro | D/C: 13+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-11

From Other Seller

Part Number:ACS712ELCTR-20A-T
US $1.50 - 2.00
ACS712ELCTR-20A-T - IC, HALL EFFECT SENSOR, SOIC-8

US $2.98 - 2.40 / Piece
(0) Remove
Quantity:

piece

Product Summary

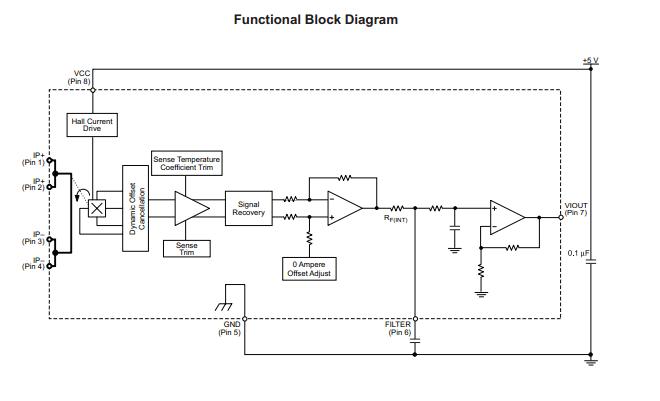

The acs712elctr-20a-t is a fully integrated, hall effect-based linear current sensor with 2.1 kVRMS voltage isolation and a low-resistance current conductor. The acs712elctr-20a-t provides economical and precise solutions for AC or DC current sensing in industrial, automotive,commercial, and communications systems. The acs712elctr-20a-t consists of a precise, low-offset, linear Hall sensor circuit with a copper conduction path located near the surface of the die.

Parametrics

acs712elctr-20a-t absolute maximum ratings: (1) Supply Voltage Vcc: 8V; (2) Reverse Supply Voltage VRCC: -0.1V; (3) Reverse Supply Voltage VIOUT: 8V; (4) Reverse Output Voltage VRIOUT: -0.1V; (5) Output Current Source IOUT (source) : 3mA; (6) Output Current Sink IOUT (sink) : 10mA; (7) Overcurrent Transient Tolerance Ip: 60A (100 total pulses, 250 ms duration each, applied at a rate of 1 pulse every 100 seconds.) ; (8) Maximum Transient Sensed Current IR (max) : 60A (Junction Temperature, Tj< Tj (max) ) ; (9) Nominal Operating Ambient Temperature TA: -40 to 85°C; (10) Storage Temperature Tstg: -65 to 170°C.

Features

acs712elctr-20a-t features: (1) low-noise analog signal path; (2) device bandwidth is set via the new filter pin; (3) 5μs output rise time in response to step input current; (4) 50kHz bandwidth; (5) total output error 1.5% at TA=25°C, and 4% at -40 to 85°C; (6) 1.2mΩ internal conductor resistance; (7) 5V, single supply operation; (8) factory-trimmed for accuracy; (9) extremely stable output offset voltage; (10) ratiometric output from supply voltage.
