Product Summary

<p>
Compact size (28 x 28 mm) <br />
Supply current: DC5V-20V (can design DC3V-24V) <br />
Current drain: < 50uA <br />
(Other choice: DC0.8V-4.5V; Current drain: 1.5mA-0.1mA) <br />
Voltage Output: High/Low level signal: 3.3V High level signal <br />
(Other choice: Open-Collector Output) <br />
<br />
TTL output can be directly connected to micro controller or logic device <br />
High sensitivity <br />
Delay time: 5s-18 minute <br />
Blockade time: 0.5s-50s (acquiescently 0 seconds) <br />
Operation Temperature: -15c -70c <br />

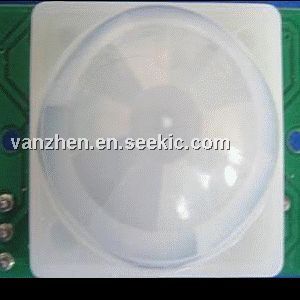

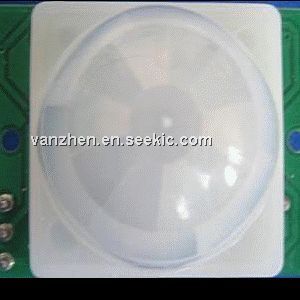

Infrared sensor: Dual element, low noise, high sensitivity <br />
Light sensor: CdS photocell (can be add as customer requirement)
</p>
