Product Summary

The SKM300GB124D is a low loss IGBT module. It is suitable for switching, AC inverter drives and UPS.

Parametrics

SKM300GB124D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 380A; (3)ICRM: 400A; (4)VGES: ±20V; (5)Tvj: -40 to 150℃; (6)Tstg: -40 to 125℃; (7)Visol: 2500V.

Features

SKM300GB124D features: (1)MOS input; (2)N channel, homgeneous Si-structure; (3)low inductance case; (4)very low tail current with low temperature dependence; (5)high short circuit capability, self limiting to 6Icnom; (6)lathc-up free; (7)fast and soft CAL diodes; (8)isolated copper baseplate using DBC direct copper bonding technology; (9)large clearance and creepage distances.

Diagrams

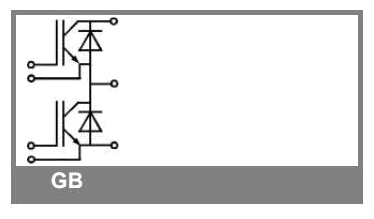

SKM300GB124D pin connection
