The SKM200GAR124D is a trench IGBT module. The applications of the SKM200GAR124D include AC inverter drives and UPS.
Parametrics
SKM200GAR124D absolute maximum ratings:(1)VCES: 1200V; (2)IC: 200A; (3)ICRM at tp=1ms: 300A; (4)VGES: ±20V; (5)Tstg: -40 to 150℃; (6)Visol: 2500V; (7)IF: 260A; (8)IFRM: 400A; (9)IFSM: 1800A.
Features
SKM200GAR124D features: (1)MOS input (voltage controlled); (2)N channel, homogeneous Si; (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6 x Icnom; (6)Latch-up free; (7)Fast & soft inverse CAL diodes; (8)Isolated copper baseplate using DCB direct copper bonding technology; (9)Large clearance (13mm) and creepage distances (20mm).

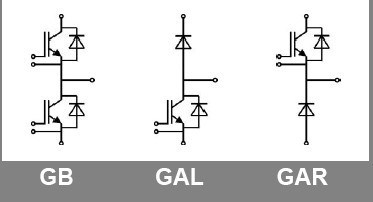

Diagrams
