Product Summary
The SKM300GAL124D is an IGBT module. The applications of it are swtiching (not for linear use), inverter drives, UPS.
Parametrics
SKM300GAL124D absolute maximum ratings: (1)VCES: 1200V; (2)IC: TC=25℃: 300A, TC=85℃: 220A; (3)ICRM(tp=1ms): 400A; (4)VGES: ±20V; (5)Tvj: -40℃ to +150℃; (6)Tstg: -40℃ to +125℃; (7)Visol: 2500V.
Features
SKM300GAL124D features: (1)MOS input; (2)N channel, homogeneous silicon structure NPT-IGBT; (3)low saturation voltage; (4)low inductance case; (5)low tail current with low temperature dependence; (6)high short circuit capability, self limiting to 6 Icnom; (7)latch-up free; (8)isolated copper baseplate using DCB direct copper bonding technology without hard mould.

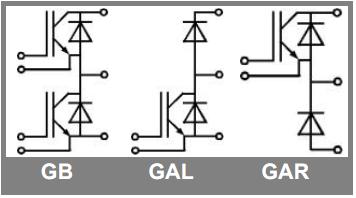

Diagrams
