Product Summary

The SKM300GA124D is an IGBT module.

Parametrics

SKM300GA124D absolute maximum ratings: (1)skm300ga123d VCES: 1200V; (2)IC @ Tcase=25℃: 400A; (3)VCEsat @ Tcase=25℃: 3.2V; (4)Ptot @ Tcase=25℃: 2500W; (5)R IGBT: 0.05℃/W; (6)RthCH: 0.038℃/W.

Features

SKM300GA124D features: (1)IGBT; (2)Supply voltage: 1200V; (3)Supply current: 300A.

Diagrams

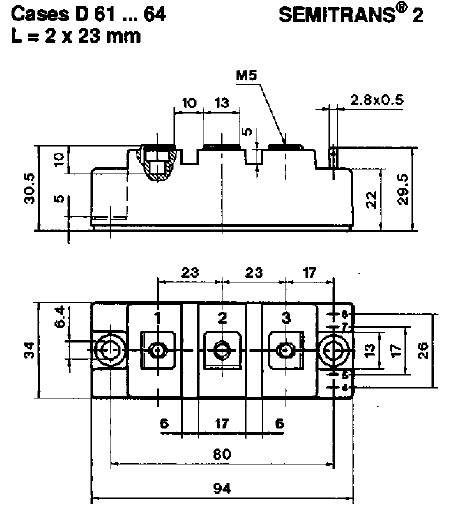

SKM300GA124D pin connection
