Product Summary
The SKM200GA126D is an IGBT module. Applications are (1)Electronic welders; (2)AC inverter drives; (3)UPS.
Parametrics
SKM200GA126D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 260A; (3)ICRM: 300A; (4)VGES: ±20V; (5)Tvj: -40 to 150℃; (6)Tstg: -40 to 125℃; (7)Visol: 4000V.
Features
SKM200GA126D features: (1)homogeneous Si; (2)trench=trenchgate technology; (3)VCE(sat) with positive temperature coefficient; (4)high short circuit capability, self limiting to 6Ic.

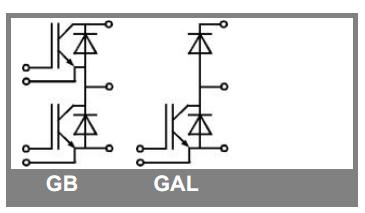

Diagrams
