Product Summary
The SKM150GAR128D is an IGBT module. The application of the SKM150GAR128D is switching (not for linear use).
Parametrics
SKM150GAR128D absolute maximum ratings: (1)VCES: 1200V; (2)IC: 150(100)A; (3)ICRM at tp=1ms: 200A; (4)VGES: ±20V; (5)Tstg: -40 to 150℃; (6)Visol: 2500V; (7)IF: 150(110)A; (8)IFRM: 200A; (9)IFSM: 1100A.
Features
SKM150GAR128D features: (1)MOS input (voltage controlled); (2)N channel, Homogeneous Si; (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6 x Icnom; (6)Latch-up free; (7)Fast & soft inverse CAL diodes; (8)Isolated copper baseplate using DCB Direct copper bonding; (9)Large clearance (12mm) and creepage distances (20mm).

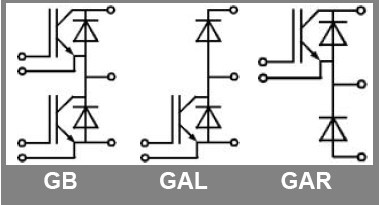

Diagrams
