The PS21865 is a Dual-in-line Package Intelligent Power Module.
Parametrics
PS21865 absolute maximum ratings: (1)VCES: 600 V; (2)Applications Motor Ratings: 1.5 kW; (3)IC: 20 A; (4)fc: 20 kHz; (5)Isolation Voltage: 2500 V.
Features
PS21865 features: (1)Ultra compact dual or single-in-line transfer mold package (compatible with 2nd generation); (2)Including driver and protection circuitry (UV, SC); (3)DIP-IPM with reduction of thermal resistance by 20%; (4)2500Vrms isolation voltage; (5)High-active interface logic for direct connection to a 3V or 5V MCU; (6)Highest reliability and optimised EMI performance; (7)Available from 3A to 50A / 600V for motor ratings from 0.1kW to 3.7kW; (8)Optional with open emitter topology for vector control; (9)All Mitsubishi DIP and Mini-DIP-IPMs have lead-free terminals; (10)From January 2006 onwards, all DIP and Mini-DIP-IPMs will be supplied with completely lead-free technology.

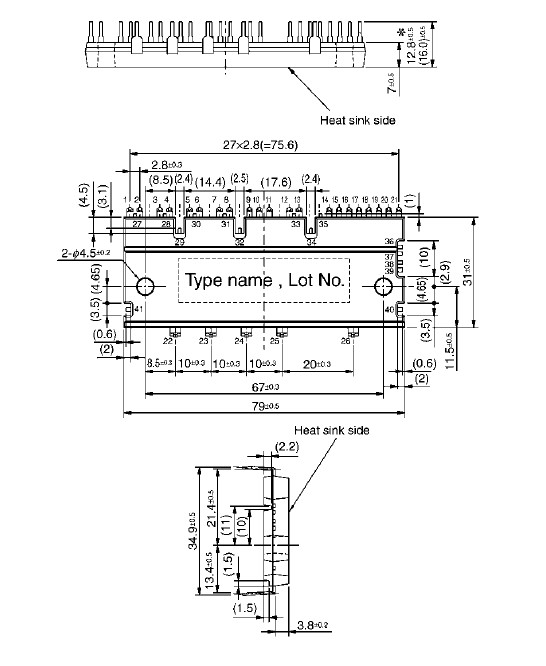

Diagrams
