Product Summary
The PS21563-P is an Intelligent Power Module. DIP and Mini DIP-IPMs are intelligent power modules that integrate power device, driver, and protection circuitry in an ultra compact dual-in-line transfer-mold package for use in driving small three phase motor. It is ideal for: (1)Washing Machines; (2)Refrigerators; (3)Air Conditioners; (4)Small Servo Motors; (5)Small Motor Control.
Parametrics

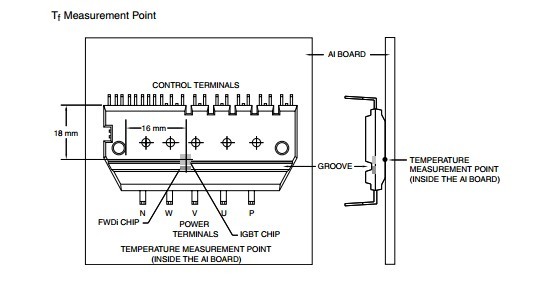

PS21563-P absolute maximum ratings: (1)Power Device Junction Temperature* Tj -20 to 125 °C; (2)Module Case Operation Temperature (See Tf Measurement Point Illustration)Tf -20 to 100 °C; (3)Storage Temperature Tstg -40 to 125 °C; (4)Mounting Torque, M3 Mounting Screws: 8.5 in-lb; (5)Module Weight (Typical): 20 Grams; (6)Self-protection Supply Voltage Limit (Short Circuit Protection Capability)** VCC(prot.): 400 Volts; (7)Isolation Voltage, AC 1 minute, 60Hz Sinusoidal, Connection Pins to Heatsink Plate VISO: 2500 Volts.
Features
PS21563-P features: (1)Compact Packages; (2)Single Power Supply; (3)Integrated HVICs; (4)Direct Connection to CPU.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PS21563-P |
|
MOD IPM 600V 10A MINI DIP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
PS21204 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PS21205 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PS21212 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PS21244-E |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
PS21244-EP |
|
MOD IPM 600V 15A DIP |
Data Sheet |
Negotiable |
|
||||
|
PS21245-E |
Other |
|
Data Sheet |
Negotiable |
|
||||
