Product Summary

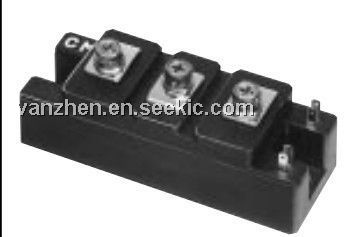

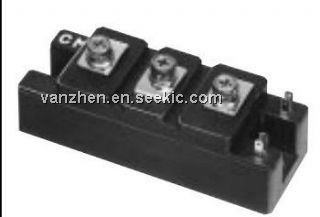

The CM75E3Y-24 is a Mitsubishi IGBT module. It is designed for use in switching applications. The CM75E3Y-24 consists of one IGBT having a reverse-connected super-fast recovery free-wheel diode and an anode-collector connected super-fast recovery freewheel diode. All components and interconnects of the CM75E3Y-24 are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.
Parametrics
CM75E3Y-24 absolute maximum ratings: (1)Junction temperature: -40 to 150 ℃; (2)Storage temperature: -40 to 125 ℃; (3)Collector-emitter voltage (G-E SHORT): 600 Volts; (4)Gate-emitter voltage (C-E short): ±20 Volts; (5)Collector current (Tc = 25℃): 75 Amperes; (6)Peak collector current: 150 Amperes; (7)Emitter current (Tc = 25℃): 75 Amperes; (8)Peak emitter current: 150 Amperes; (9)Maximum collector dissipation (Tc = 25℃, Tj ≤ 150℃): 310 Watts; (10)Mounting torque, M5 main terminal: 2.5 to 3.5 N·m; (11)Mounting Torque, M6 Mounting: 3.5 to 4.5 N·m; (12)Weight: 310 Grams.
Features
CM75E3Y-24 features: (1)Low drive power; (2)Low VCE(sat); (3)Discrete super-fast recovery free-wheel diode; (4)High frequency operation; (5)Isolated baseplate for easy heat sinking.
Diagrams
