Product Summary

The CM600HU-12H is a high power switching use insulated type module. The applications of the CM600HU-12H include UPS, NC machine, AC-Drive control, Servo and Welders.

Parametrics

CM600HU-12H absolute maximum ratings: (1)Collector-emitter voltage: 600 V; (2)Gate-emitter voltage: ±20 V; (3)Maximum collector dissipation: 1560 W; (4)Junction temperature: -40 to +150 ℃; (5)Storage temperature: -40 to +125 ℃; (6)Isolation voltage: 2500 V; (7)Weight: 450 g.

Features

CM600HU-12H features: (1) IC: 600 A; (2)VCES: 600 V; (3)Insulated Type; (4)1-element in a pack; (5)UL Recognized.

Diagrams

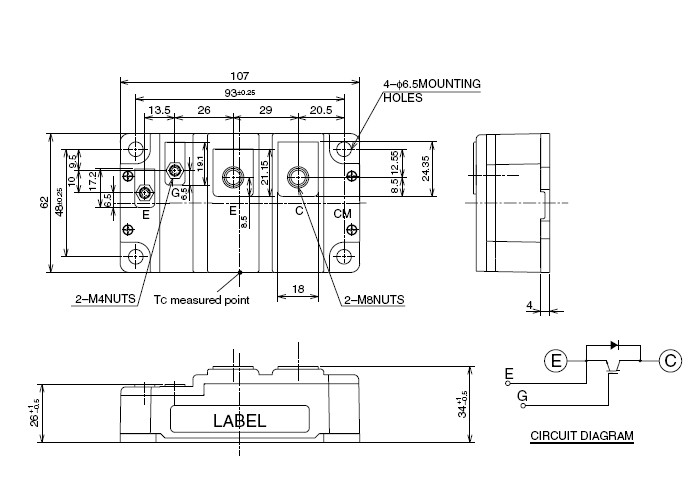

CM600HU-12H dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM600HU-12H
CM600HU-12H

IGBT MOD SGL 600V 600A H SER
Data Sheet
Negotiable
