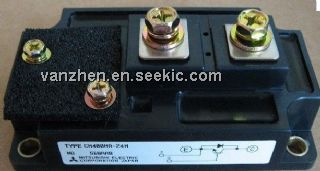

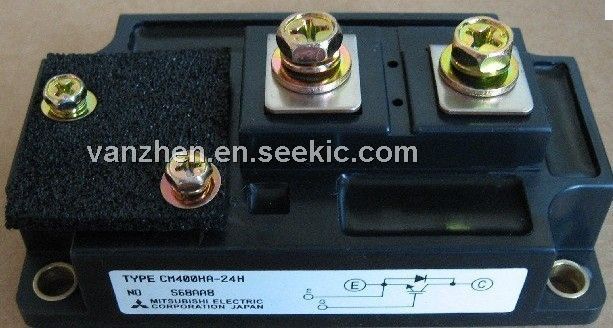

CM400HA-24A

Low Drive Power, Low VCE(sat), High Frequency Operation, IGBT module, 1200Volt

Rated 5 Rating 5 | reviews | Write a review

Price:: US $20.00~30.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	30.00 / Break
101 ~ 1000 :	25.00 / Break
1001 ~ 10000 :	20.00 / Break

PartNumber:: CM400HA-24A

Brand:: MITSUBISHI - MITSUBISHI | D/C: 13+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. mona cao's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-27

From Other Seller

Part Number:CM400HA-24A
US $20.00 - 30.00
CM400HA-24A

US $1.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The CM400HA-24A is an IGBT module. It is designed for use in switching applications. The CM400HA-24A consists of one IGBT in a single configuration with a reverse-connected super-fast recovery free wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM400HA-24A are AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.

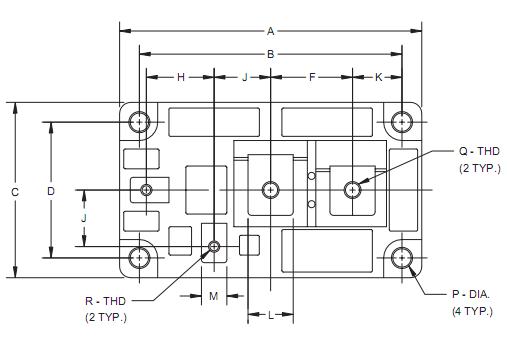

Parametrics

CM400HA-24A absolute maximum ratings: (1)Junction Temperature:-40℃ to 150℃; (2)Storage Temperature:-40℃ to 125℃; (3)Collector-Emitter Voltage (G-E SHORT):1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT):±20 Volts; (5)Collector Current (Tc = 25℃):400 Amperes; (6)Peak Collector Current (Tj≤ 150℃):800Amperes; (7)Emitter Current (Tc = 25℃):400Amperes; (8)Peak Emitter Current:800Amperes; (9)Maximum Collector Dissipation (Tc = 25℃):2800Watts; (10)Mounting Torque, M6 Main Terminal:1.96 to 2.94 N.m; (11)Mounting Torque, M6 Mounting:1.96 to 2.94 N.m; (12)Mounting Torque, M4 Terminal:0.98 to 1.47 N.m; (13)Weight:400 Grams; (14)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.):2500 Vrms.

Features

CM400HA-24A features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.
