Product Summary

The CM300DY-24E is an IGBT module. Applications are (1)General purpose inverters; (2)Servo controls, etc.

Parametrics

CM300DY-24E absolute maximum ratings: (1)Collector-emitter voltage: 1200V; (2)Gate-emitter voltage: ±20V; (3)Maximum collector dissipation: 1130W; (4)Junction temperature: -40℃ to +150℃; (5)Storage temperature: -40℃ to +125℃; (6)Isolation voltage: 2500Vrms; (7)Collector current: 300A or 600A; (8)Emitter current: 300A or 600A.

Features

CM300DY-24E features: (1)IC: 300A; (2)VCES: 1200V; (3)Insulated type; (4)2-elements in a pack.

Diagrams

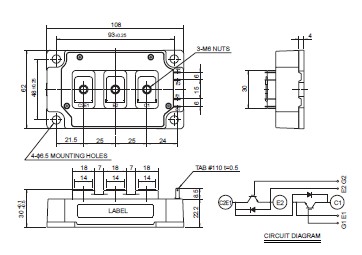

CM300DY-24E pin connection
