Product Summary
The CM100DU-24H is an IGBT module. The CM100DU-24H is designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. The applications of the CM100DU-24H include AC Motor Control, Motion/Servo Control, UPS, Welding Power Supplies.
Parametrics
CM100DU-24H absolute maximum ratings: (1)Junction Temperature Tj: -40 to 150℃; (2)Storage Temperature Tstg: -40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT) VGES: ±20 Volts; (5)Collector Current (Tc = 25℃) IC: 100 A; (6)Peak Collector Current ICM: 200A; (7)Emitter Current (Tc = 25℃) IE: 100 A; (8)Peak Emitter Current IEM: 200A; (9)Maximum Collector Dissipation (Tc = 25℃, Tj≤ 150℃) Pc: 650W.
Features
CM100DU-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

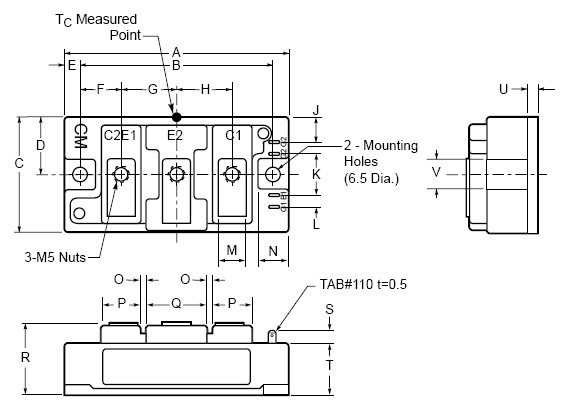

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM100DU-24H |
|
IGBT MOD DUAL 1200V 100A U SER |
Data Sheet |
|
|
||||||
