Product Summary

The APT8030JVFR is a high voltage N-Channel enhancement mode power MOSFET. This new technology minimizes the JFET effect, increases packing density and reduces the on-resistance. Power MOS VR also achieves faster switching speeds through optimized gate layout.

Parametrics

APT8030JVFR absolute maximum ratings: (1)Drain-Source Voltage: 800V; (2)Continuous Drain Current @ TC = 25°C: 25A; (3)Pulsed Drain Current: 100A; (4)Gate-Source Voltage Continuous: ±30V; (5)Gate-Source Voltage Transient: ±40V; (6)Total Power Dissipation @ TC = 25°C: 450W; (7)Linear Derating Factor: 3.6W/°C; (8)Operating and Storage Junction Temperature Range: -55 to 150°C; (9)Lead Temperature: 0.063" from Case for 10 Sec.: 300°C; (10)Avalanche Current 1 (Repetitive and Non-Repetitive): 25A; (11)Repetitive Avalanche Energy: 50mJ; (12)Single Pulse Avalanche Energy: 2500mJ.

Features

APT8030JVFR features: (1)Fast Recovery Body Diode; (2)100% Avalanche Tested; (3)Lower Leakage; (4)Popular SOT-227 Package; (5)Faster Switching.

Diagrams

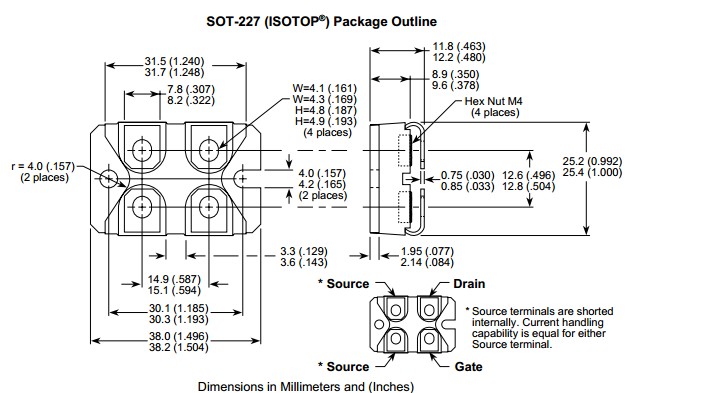

APT8030JVFR package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
APT8030JVFR
APT8030JVFR

MOSFET N-CH 800V 25A SOT-227
Data Sheet
