Product Summary
6MBP15RH060 is an IGBT module. The applications of the 6MBP15RH060 include Inverter for motor drive, AC and DC servo drive amplifier and UPS (Uninterruptible power supply).
Parametrics
6MBP15RH060 absolute maximum ratings: (1)DC bus voltage: 450 V; (2)DC bus voltage (Surge): 500 V; (3)DC bus voltage (Short operating): 400 V; (4)Collector-Emitter voltage: 600 V; (5)Collector current: 15 A; (6)Collector power dissipation: 40 W; (7)Junction temperature: 150 ℃; (8)Input voltage of power supply for pre-driver: -0.3 to 20 V; (9)Input signal current: 1 mA; (10)Alarm signal current: 15 mA; (11)Storage temperature: -40 to 125 ℃; (12)Operating case temperature: -20 to 100 ℃.
Features
6MBP15RH060 features: (1)Low power loss and soft switching; (2)High performance and high reliability IGBT with overheating protection; (3)Higher reliability because of a big decrease in number of parts in built-in control circuit.

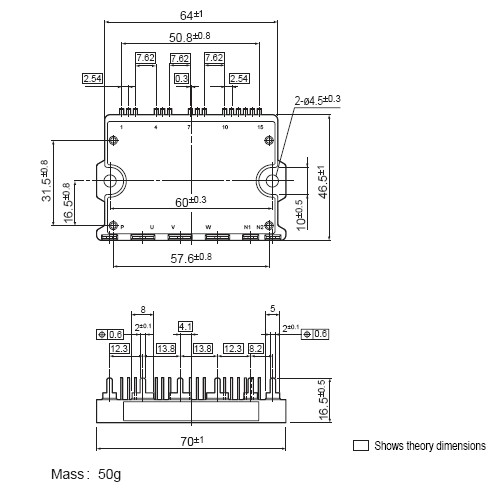

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 6MBP15RH060 |
Other |
|
Data Sheet |
Negotiable |
|
||||
