Product Summary
The SKM200GB126D is a trench IGBT module. The typical applications of the device are electronic welders, AC inverter drives and UPS.
Parametrics
SKM200GB126D absolute maximum ratings: (1)VCE: 1200V; (2)IC: 260A; (3)ICRM: 300A; (4)VGES: ±20V; (5)tpsc: 10us; (6)Tvj: -40 to 150℃; (7)Tstg: -40 to 125℃; (8)Visol: 4000V.
Features
SKM200GB126D features: (1)trench=trenchgete technology; (2)VCE(sat) with positive temperature coefficient; (3)high short circuit capability, self limiting to 6Ic.

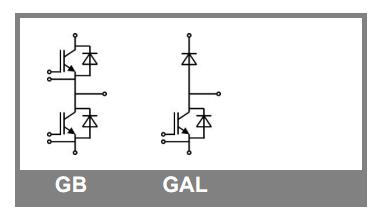

Diagrams
