Product Summary

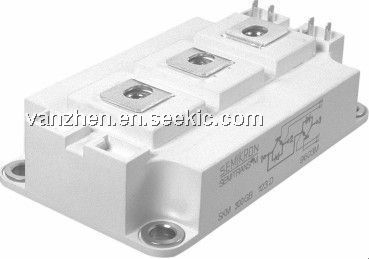

The SKM300GAL128DE is an IGBT module. Its applications include ac inverter drives, UPS, electonic welders at fsw up to 20kHz.
Parametrics
SKM300GAL128DE absolute maximum ratings: (1)VCES: 1200V; (2)IC: 370A; (3)ICRM: 400A; (4)VGES: ±20V; (5)IF: 260A; (6)IFSM: 1800A.
Features
SKM300GAL128DE features: (1)homogeneous Si; (2)spt technology; (3)VCE with positive temperature coefficient; (4)high short circuit capability.

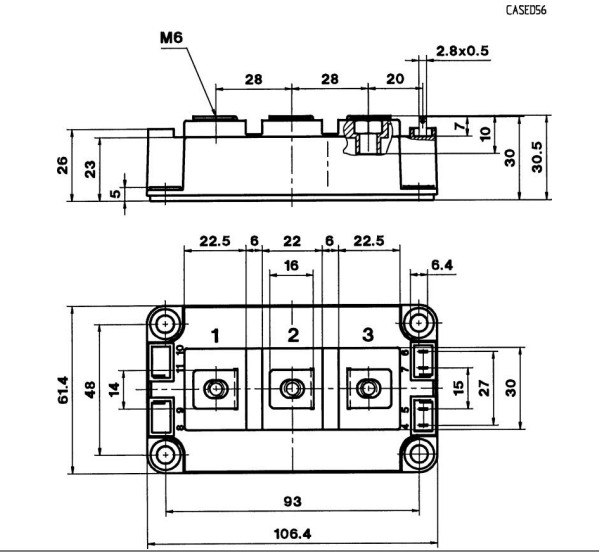

Diagrams
