Product Summary

The 2MBI100SC-060 is an IGBT module. Applicatiopns are (1)Inverter for motor drive; (2)AC and DC servo drive amplifier; (3)Uninterruptible power supply; (4)Industrial machines, such as welding machines.

Parametrics

2MBI100SC-060 absolute maximum ratings: (1)Collector-emitter voltage VCES: 1200V; (2)Gate-emitter voltaga VGES: 20V; (3)Collector current: 300A; (4)Max power dissipation PC: 780W; (5)Operating temperature Tj: 150℃; (6)Storage temperature Tstg: -40 to +125℃.

Features

2MBI100SC-060 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

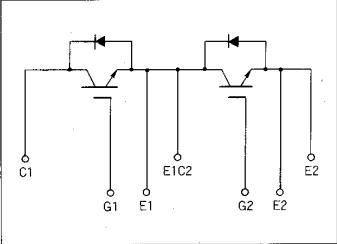

2MBI100SC-060 pin connection
