Product Summary
The 2MBI75L-140 is an IGBT module. The applications of the 2MBI75L-140 include inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply, industrial machines, such as welding machines.
Parametrics
2MBI75L-140 absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1200 V; (2)Gate-emitter voltage, VGES: ±20 V; (3)Collector current, IC: 75 A; ICP: 150 A; -IC: 75 A; -ICP: 150 A; (4)Power dissipation, PA: 600 W; (5)Operating temperature, Tj: 150 ℃; (6)Storage temoerature, Tstg: -40 to 125 ℃; (7)Isolation voltage, Visol: 2500 V.
Features
2MBI75L-140 features: (1)High speed switching; (2)Low saturation voltage; (3)Voltage drive.

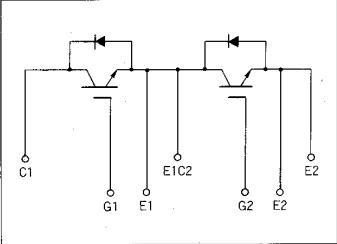

Diagrams
