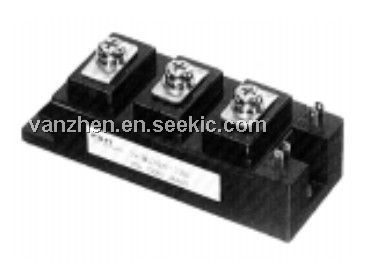

The 2MBI75J-060 is an IGBT module. Applications are (1)High power switching; (2)A.C. motor controls; (3)D.C. motor controls; (4)Uninterruptible power supply.
Parametrics
2MBI75J-060 absolute maximum ratings: (1)Collector-emitter voltage, VCES: 600 V; (2)Gate -emitter voltage VGES: ± 20 V; (3)Collector current, continuous, IC: 75 A; 1ms, IC pulse: 150 A; continuous. -IC: 75 A; 1ms, -IC pulse: 150 A; (4)Max. power dissipation, PC: 320 W; (5)Operating temperature, Tj: +150 ℃; (6)Storage temperature, Tstg: -40 to +125 ℃; (7)Isolation voltage A.C. 1min, Vis: 2500 V.
Features
2MBI75J-060 features: (1)Square RBSOA; (2)Low saturation voltage; (3)Less total power dissipation; (4)Improved FWD characteristic; (5)Minimized internal stray inductance; (6)Overcurrent limiting function (~3 times rated current).

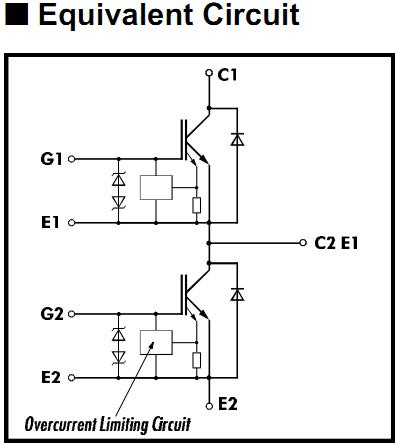

Diagrams
